Verilog - mux4_to_1 & test bench





---

4:1 MUX







4:1MUX Design Source



module mux_4to1 (out, i0, i1, i2, i3, s1, s0);

    //output,input declaration
    output out;
    input i0, i1, i2, i3;
    input s1, s0;

    //wire(net) declaration
    wire n1, n0;   //not gate out wire
    wire a0, a1, a2, a3;   //and gate out wire

    //not gate
    not (n1, s1);
    not (n0, s0);

    //and gate
    and (a0, i0, n1, n0);  //00
    and (a1, i1, n1, s0);   //01
    and (a2, i2, s1, n0);   //10
    and (a3, i3, s1, s0);    //11

    //or gate
    or (out, a0, a1, a2, a3);

endmodule

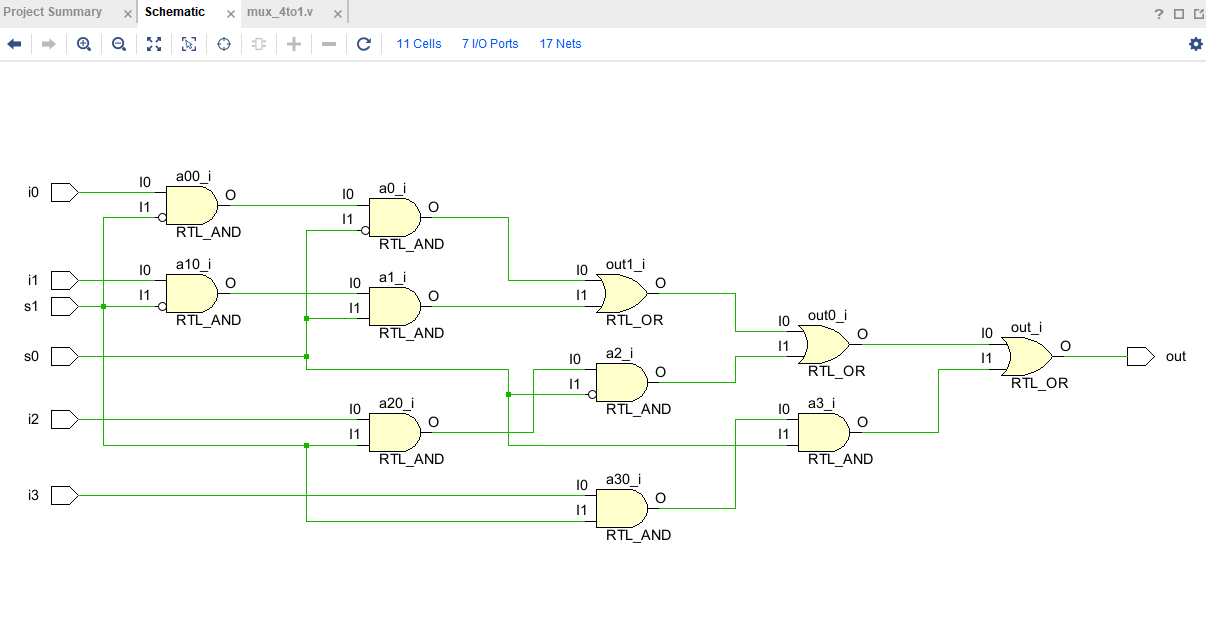

Schematic











Synthesis report

???







Test bench Code



module tb_mux_4to1();

//Stimulus Declaration (input)
 reg IN0, IN1, IN2, IN3;
 reg S1, S0;

//Response Declaration (output)
 wire OUTPUT;

mux_4to1 mymux (OUTPUT, IN0, IN1, IN2, IN3, S1, S0);

//stimulus
initial begin
     IN0 = 1;
     IN1 = 0;
     IN2 = 1;
     IN3 = 0;

     S1 = 0; S0 = 0;
     #5 S1 = 0; S0 = 1;
     #5 S1 = 1; S0 = 0;
     #5 S1 = 1; S0 = 1;
end

endmodule

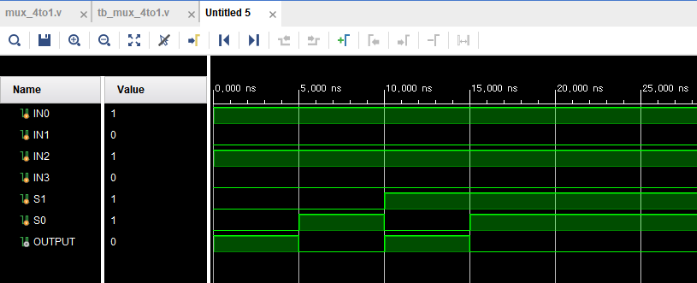

Simulation Result









Discussion



- Code 설명 (어떠한 동작을 하는가)



- Test bench code 설명 및 simulation 파형에 대한 설명



- Code가 의도한대로 동작하지 않았을 때의 원인 및 해결 방법
